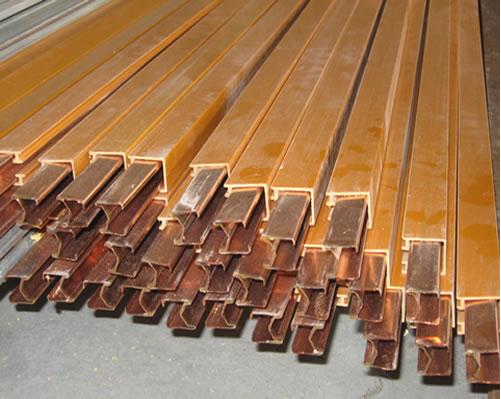

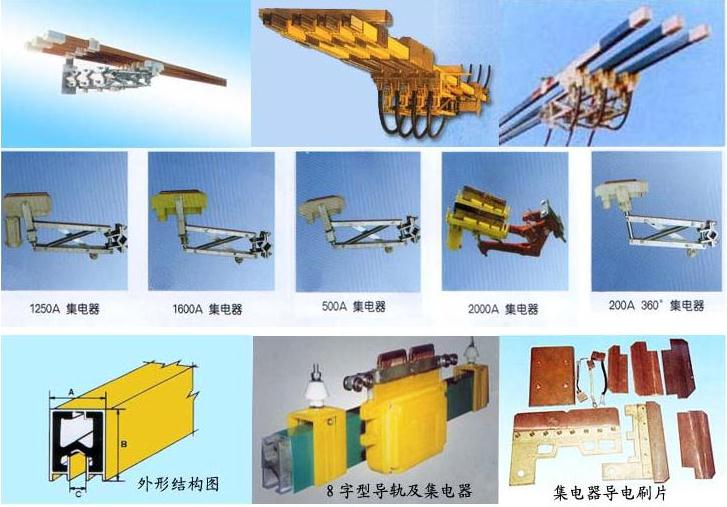

HXPnR-Hn型(xing)安全節能滑觸線，選用(yong)(yong)耐腐(fu)蝕的，導(dao)(dao)電(dian)(dian)性能優良的無(wu)氧銅(tong)作(zuo)導(dao)(dao)體，具(ju)有許用(yong)(yong)電(dian)(dian)流密度高(gao)、阻抗(kang)低等優點(dian)。采用(yong)(yong)了鋁合金滑觸線的骨觸面形式，使集電(dian)(dian)器與(yu)導(dao)(dao)軌(gui)滑面的接觸更可靠，穩定性更高(gao)。由于(yu)導(dao)(dao)軌(gui)的外(wai)形尺寸與(yu)鋁導(dao)(dao)軌(gui)相同，配件(jian)可以互(hu)換(huan)，表現了該產品的通用(yong)(yong)性。在滿足移動設(she)(she)備受(shou)電(dian)(dian)的同時，可用(yong)(yong)于(yu)固定設(she)(she)備的輸電(dian)(dian)母線或作(zuo)車間母線用(yong)(yong)。
H型(xing)單極(ji)銅滑(hua)觸(chu)線技(ji)術參數:
|
項(xiang)目/型號 |
160A |
200A |
250A |
300A |
340A |
400A |
500A |
800A |
|
額定電流(liu)A |
160 |
200 |
250 |
300 |
340 |
400 |
500 |
800 |
|
20℃時的直流電(dian)阻 |
0.355 |
0.321 |
0.282 |
0.235 |
0.206 |
0.191 |
1.139 |
0.088 |
|
軌(gui)距80時的阻抗(kang)Ω/Km |
0.398 |
0.363 |
0.322 |
0.275 |
0.249 |
0.236 |
0.194 |
0.088 |
|
耐壓試驗Ω/Km |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
護(hu)套的可燃性 |
自滅型 |
— |
— |
— |
— |
— |
— |
— |
|
導軌的標準(zhun)長度m |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
支架間(jian)距 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
H型(xing)單極銅(tong)滑觸(chu)線技術參數：
|
項目/型(xing)號 |
1000A |
1250A |
1600A |
2000A |
2500A |
3150A |
3500A |
4000A |
|
額定電流A |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
3500 |
4000 |
|
30℃時的直流電阻 |
0.077 |
0.0613 |
0.048 |
0.395 |
0.00317 |
0.0254 |
0.0233 |
0.0204 |
|
軌距(ju)150時的阻抗 |
0.148 |
0.141 |
0.134 |
0.124 |
0.122 |
0.112 |
0.112 |
0.109 |
|
耐(nai)壓試驗(yan)Ω/Km |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
